ICMP and the ICMPipe experiment

The Internet Control Message Protocol (ICMP) is best known for powering the ping command. It was designed for diagnostics and error reporting, not for general-purpose file transfer.

ICMPipe is a proof-of-concept that moves file contents through ICMP payload bytes by adding a lightweight application-layer protocol on top of standard ICMP echo request/reply traffic.

This article explains the protocol design, shows how the client/server exchange works, and highlights the practical limitations and improvement opportunities.

Protocol overview

ICMPipe uses four payload flags:

• FR — File Request
• FA — File Acknowledgment
• FP — File Pull
• FD — File Data

The protocol runs in two phases:

1. Client sends FR:<absolute path> to request a file.
2. Server replies with FA:<file size> or FA:File Not Found.
3. Client sends FP:<absolute path> to begin the transfer.
4. Server streams the file in FD:<base64 chunk> payloads.
5. Client reassembles chunks until the total received size matches the acknowledged file size.

Phase 1: File discovery
Client -> Server: FR:<absolute_path>
Server -> Client: FA:<file_size> OR FA:File Not Found

Phase 2: File transfer
Client -> Server: FP:<absolute_path>
Server -> Client: FD:<base64_chunk>
Client -> Server: FD:<acknowledgment>
...
Terminate when received size >= file size
Reassemble payloads

Current implementation and limitations

The current ICMPipe implementation is intentionally simple. It demonstrates the concept, but it does not yet offer the reliability or robustness required for production-grade transfer.

Key limitations include:

• Loss recovery
  • No retransmission for lost FD packets
  • No sequence numbers for out-of-order delivery
• Data integrity
  • Only file size is validated
  • No checksum, hash, or authentication
• Session recovery
  • No resume for interrupted transfers
• Packet handling
  • Assumes packets arrive in order
  • Does not manage ICMP fragmentation or device filtering
• Performance
  • Fixed payload chunk size
  • No congestion or rate control
• External dependencies
  • Relies heavily on the libpcap library for packet capture and injection

Enhancement opportunities

Recommended improvements:

• Add sequence numbers for every FD chunk.
• Add checksums or HMACs for chunk verification.
• Implement retransmission and timeout handling.
• Add resume support for interrupted transfers.
• Support adaptive chunk sizes and rate limiting.
• Add optional encryption or authentication for secure use.
• Remove the libpcap dependency by interacting directly with low-level system APIs (e.g., raw sockets or AF_PACKET) for better portability and control.

ICMPipe in action

Disclaimer: ICMPipe is provided for educational purposes only. Use it only on systems and networks you are authorized to test.

ICMPipe depends on standard ICMP echo request/reply behavior. If the network or host modifies ICMP handling, the code may need adjustment and a rebuild.

Source code, executables, and installation instructions are available in the GitHub repository.

Test lab workflow

A Linux-based client (172.16.2.11) requests a file from a Windows server (172.16.2.102). The experiment validates the FR/FA/FP/FD exchange, payload encoding, and packet-level behavior.

Running the ICMPipe server

For the initial test, only the Windows server executable is required.

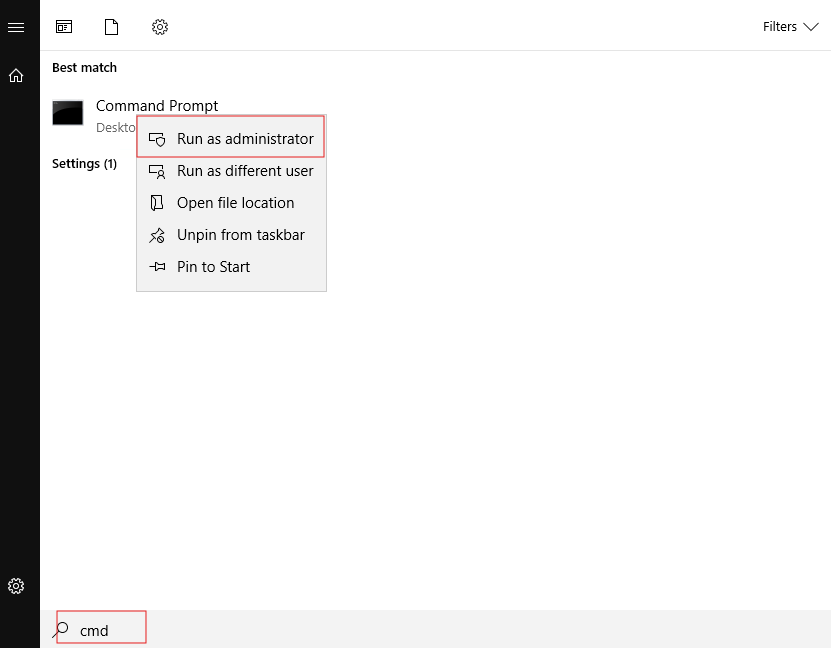

1. Open Command Prompt as Administrator to allow raw ICMP operations.

1. Download the server executable:

curl -L https://raw.githubusercontent.com/almontasercloud-collab/ICMPipe/main/server/ICMPipe-Server.exe -o ICMPipe-Server.exe

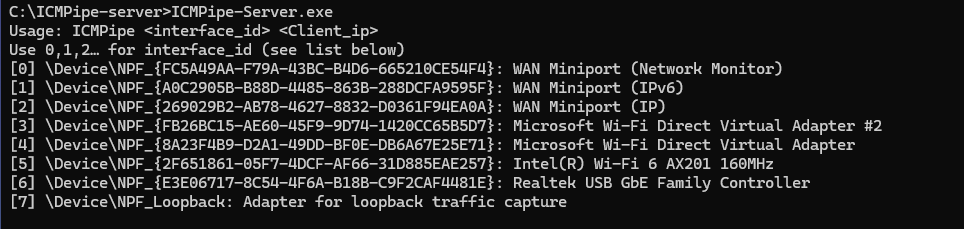

1. Enumerate available adapters and supported flags:

ICMPipe-Server.exe

1. Start the server on the desired interface and bind it to the client IP:

ICMPipe-Server.exe 3 172.16.2.11

The server is now ready to handle incoming file requests from the configured client.

Starting the ICMPipe client

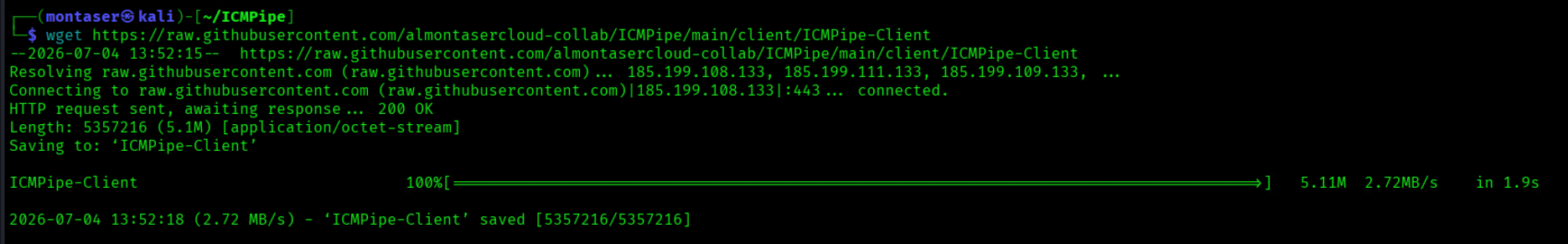

1. Download the client binary:

wget https://raw.githubusercontent.com/almontasercloud-collab/ICMPipe/main/client/ICMPipe-Client

1. Make the binary executable:

sudo chmod 775 ./ICMPipe-Client

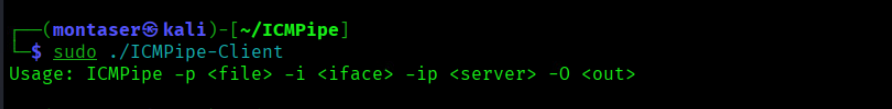

1. Display client usage:

sudo ./ICMPipe-Client

Initiating a file request

The logs below show the full transfer lifecycle from initial file request through final reassembly. The client IP is 172.16.2.11 and the server IP is 172.16.2.102.

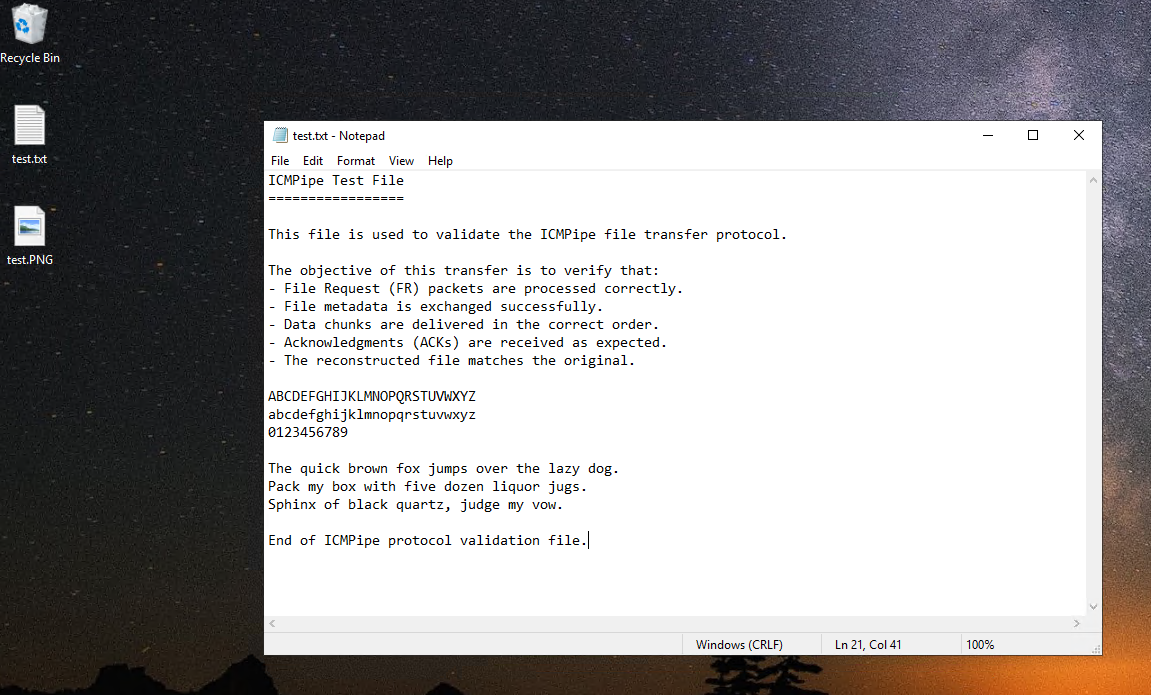

1. Confirm the requested file exists on the server:

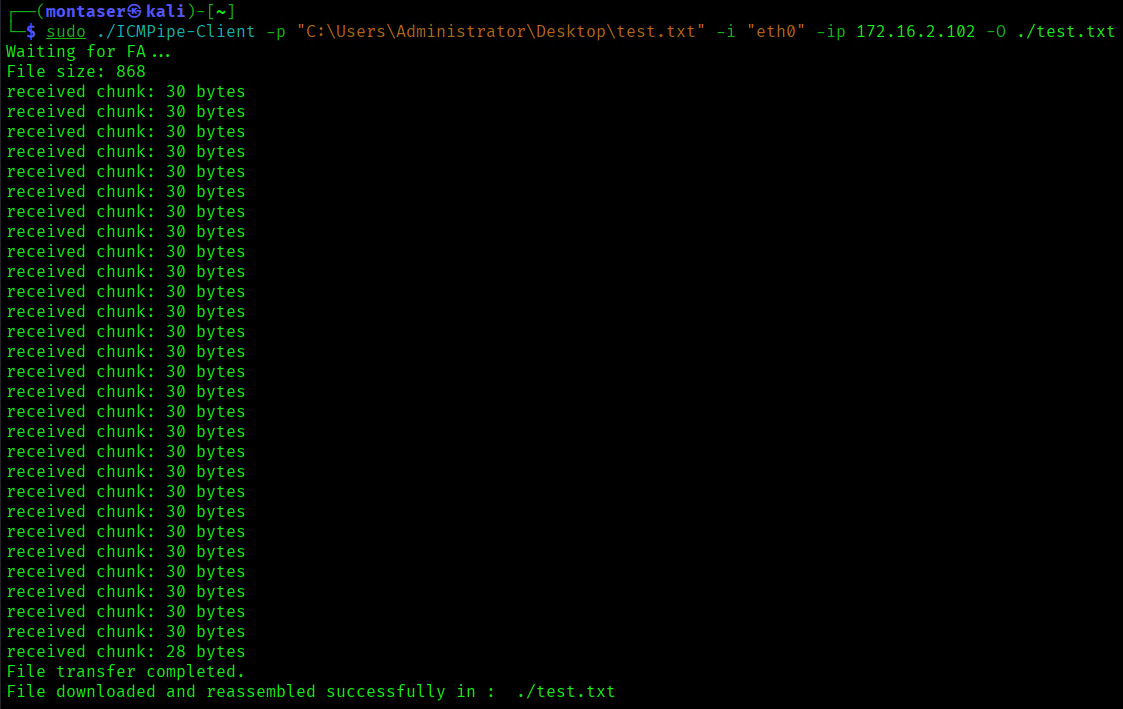

1. Request test.txt from the client:

sudo ./ICMPipe-Client -p "C:\Users\Administrator\Desktop\test.txt" -i "eth0" -ip 172.16.2.102 -O ./test.txt

The message File downloaded and reassembled successfully in : ./test.txt indicates that the transfer finished successfully.

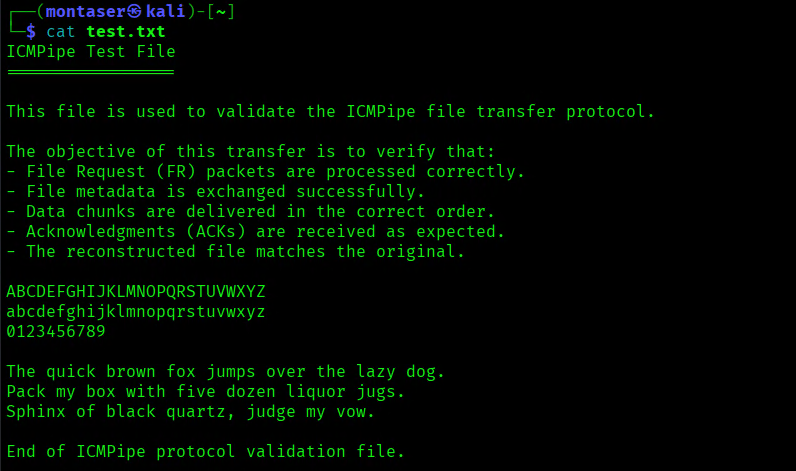

1. Verify the downloaded file:

cat ./test.txt

Successful reconstruction confirms the file was transferred and reassembled correctly.

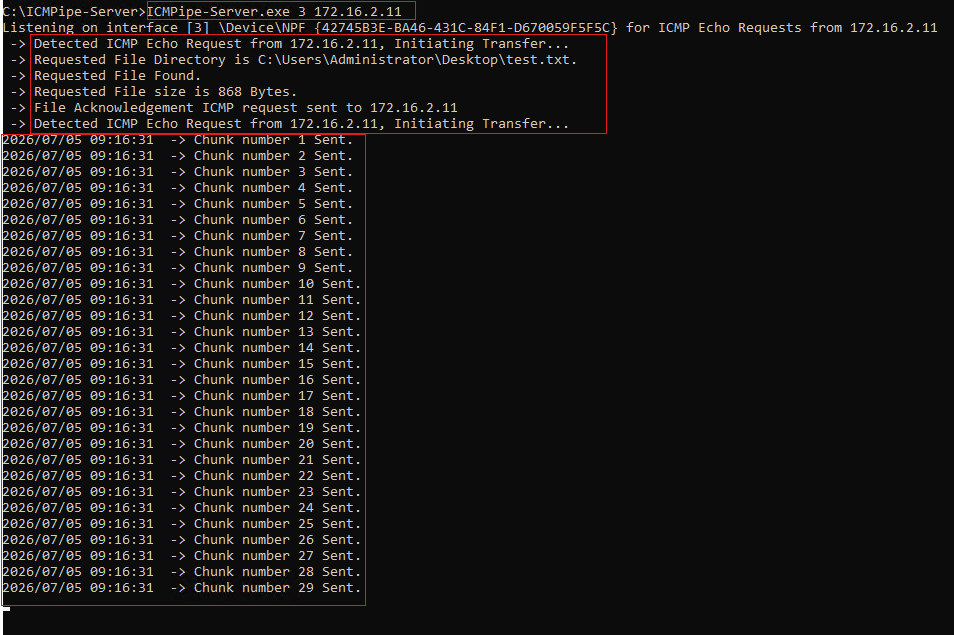

Server runtime logs

The server log output shows how the request is processed and how file chunks are dispatched.

Packet capture analysis

The packet capture confirms the protocol behavior on the wire, from the initial FR request through the stream of FD chunks.

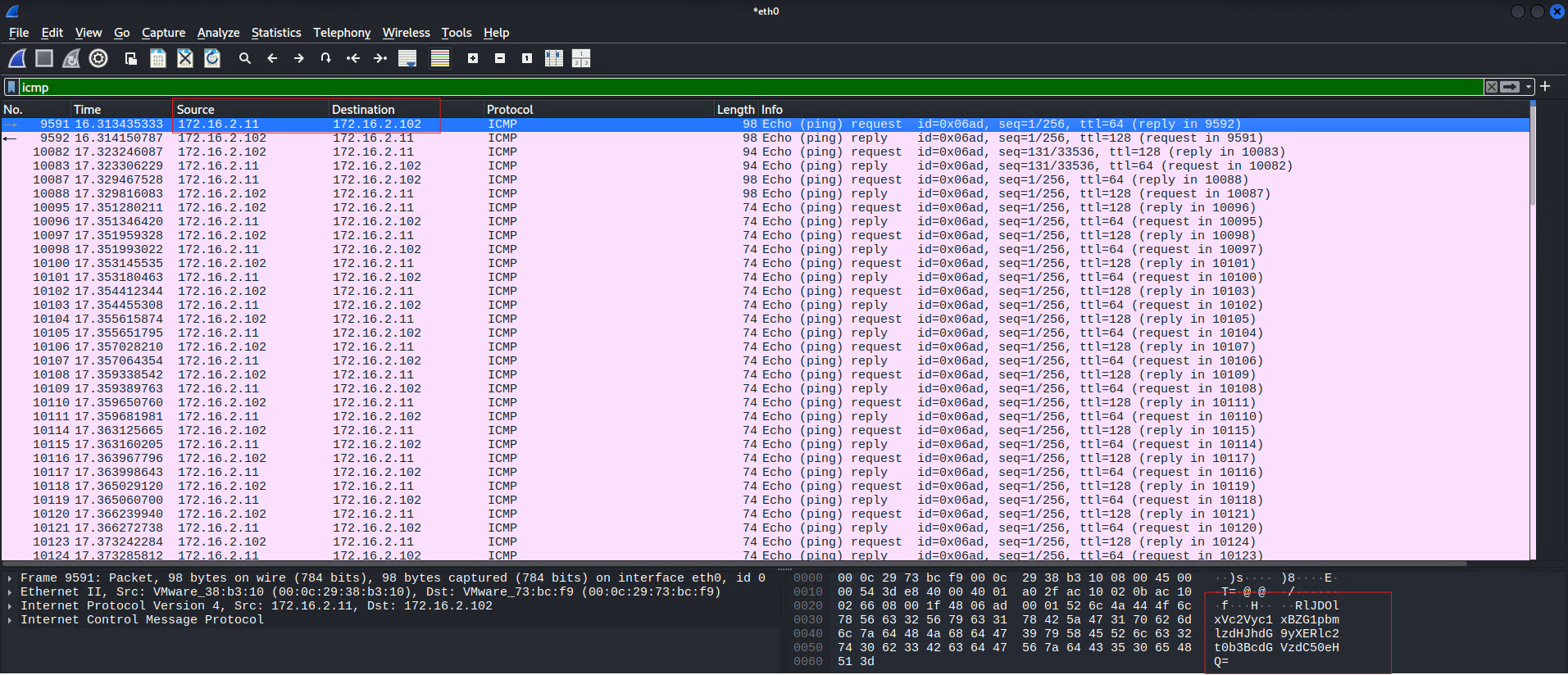

File Request packet

• Payload (Base64):

RlJDOlxVc2Vyc1xBZG1pbmlzdHJhdG9yXERlc2t0b3BcdGVzdC50eHQ=

• Decoded payload:

FRC:\Users\Administrator\Desktop\test.txt

The client sends FR followed by the requested path to start the transfer.

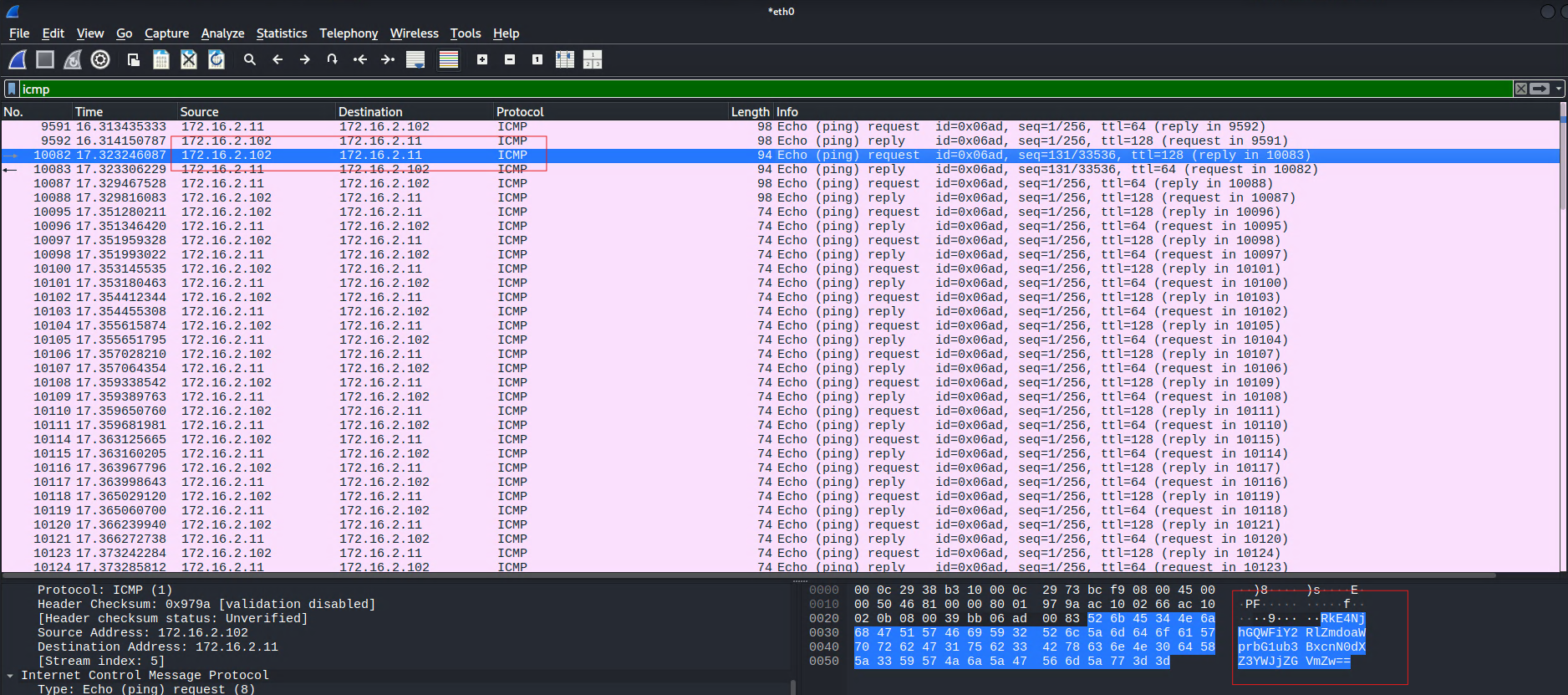

File Acknowledgment packet

• Payload (Base64):

RkE4NjhGQWFiY2RlZmdoaWprbG1ub3BxcnN0dXZ3YWJjZGVmZw==

• Decoded payload:

FA868FAabcdefghijklmnopqrstuvwabcdefg

The server replies with FA<size>FA and fills the remaining payload with default ICMP data.

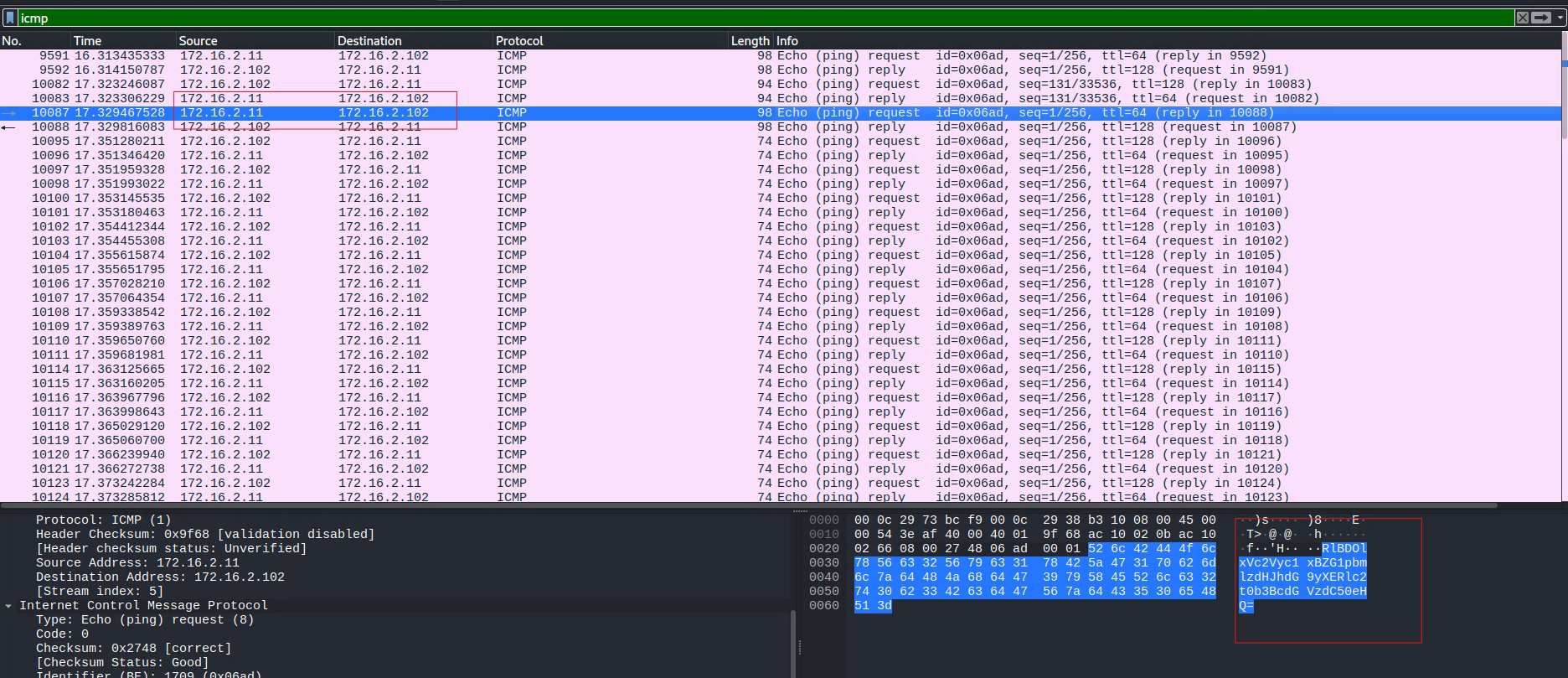

File Pull packet

• Payload (Base64):

RlBDOlxVc2Vyc1xBZG1pbmlzdHJhdG9yXERlc2t0b3BcdGVzdC50eHQ=

• Decoded payload:

FPC:\Users\Administrator\Desktop\test.txt

The client sends FP to tell the server to begin streaming the file.

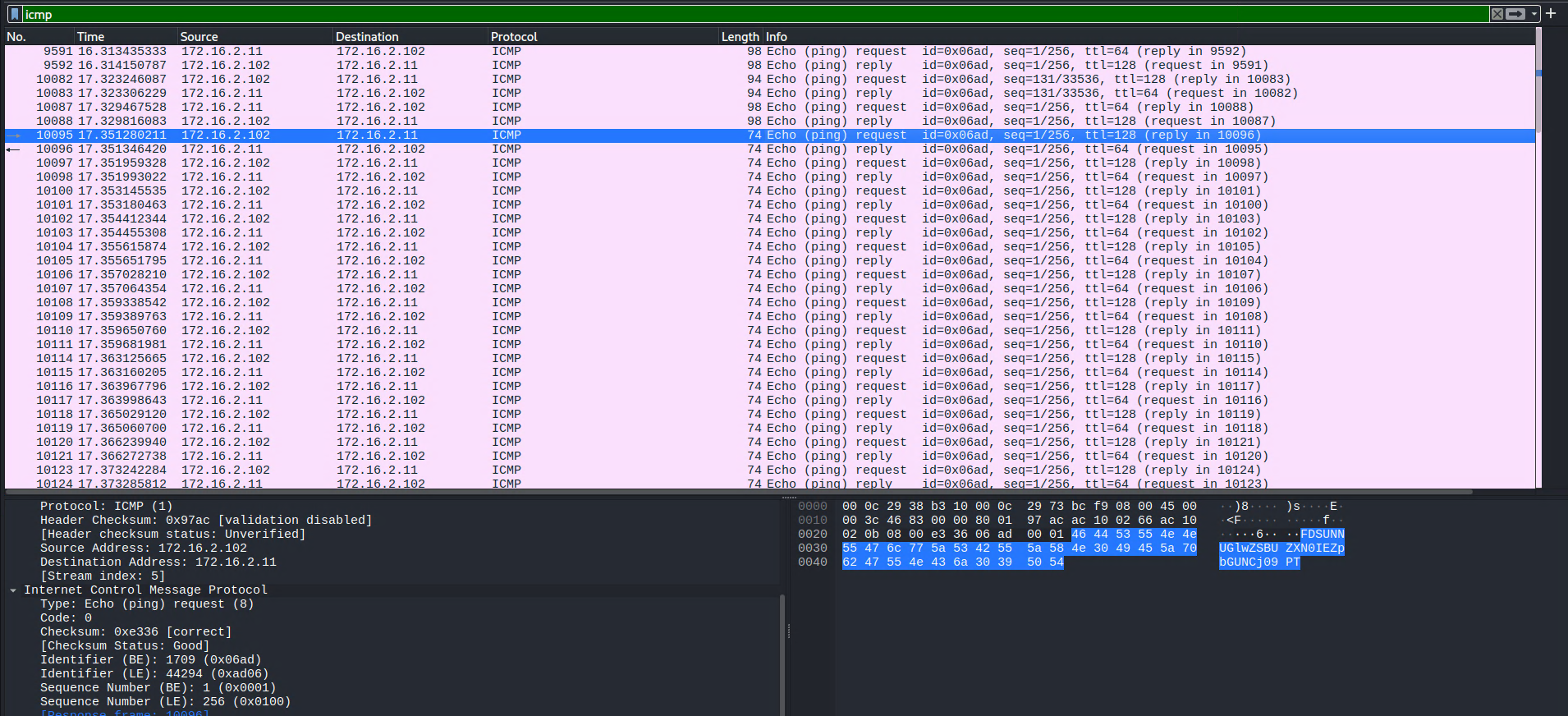

Data chunk packets

• Payload:

FDSUNNUGlwZSBUZXN0IEZpbGUNCj09PT

• Decoded payload after removing FD:

ICMPipe Test File
===

The server sends Base64-encoded file chunks prefixed with FD. The client decodes each chunk and assembles the file until transfer completion.

The current chunk size is fixed in the server source code and can be adjusted here:

const icmpPayloadSize = 32  // Payload size
const prefix = "FD"
const usableDataSize = icmpPayloadSize - len(prefix)
count := 0

for i := 0; i < len(encodedData); i += usableDataSize {
    end := i + usableDataSize
    ...
}

Conclusion

ICMPipe demonstrates a simple file transfer protocol built on ICMP echo messages. It shows how custom protocol logic can coordinate structured data exchange over a protocol originally designed for diagnostics.

The next steps should focus on removing the dependancy on libpcap and enhancing the protocol with mechanisms for reliable delivery, integrity verification, session recovery, adaptive payload sizing, and resilience to ICMP rate limiting and packet loss.
